BPCF Series – Metal Male Thread Fitting, Durable and Quick Installation

Specification:

Product Overview

The BPCF Series is a metal male-thread pneumatic fitting designed for high-flow applications. It ensures secure, reliable connections in pneumatic systems and offers nickel-plated metal construction for corrosion resistance and high-temperature tolerance. Featuring a push-in connection system, it allows easy and quick tube installation, making it ideal for use in industrial pneumatic systems.

Key Features & Characteristics

1. Male-threaded metal design ensures strong and secure connections
2. Nickel-plated finish provides excellent corrosion resistance and high-temperature tolerance
3. Quick and easy push-in connection system, saving time on installation
4. High flow capacity, ensuring stable system performance
5. Compact design, perfect for various applications

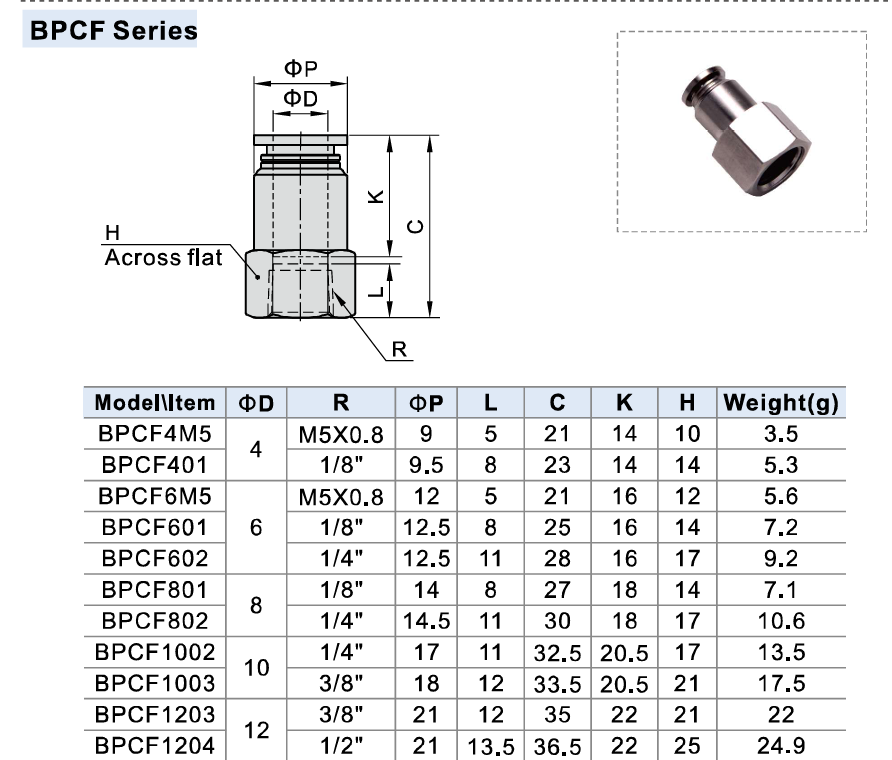

Technical Specifications

1. Operating pressure: 0 ~ 0.9 MPa
2. Proof pressure: 1.5 MPa
3. Working temperature: 0 ~ 150°C
4. Material: Nickel-plated metal
5. Models: BPCF4M5, BPCF401, BPCF6M5, BPCF601, BPCF602, BPCF801, BPCF802, BPCF1002, BPCF1003
6. Port size: Φ4, Φ6, Φ8, Φ10, Φ12

Advantages

1. Quick installation, reducing setup time and effort
2. Effective corrosion resistance, ensuring long-lasting durability
3. High-temperature tolerance, suitable for harsh environments
4. Easy push-in connection, no tools required
5. Space-saving design, easily integrates into pneumatic systems

Applications

1. Industrial pneumatic systems
2. Control panels, air distribution systems
3. Automation machinery and production lines
4. Industries like mechanical, electronics, food processing, packaging
5. Applications that require quick and efficient pneumatic tube connections
