Guided Rodless Magnetic Cylinder with Ball Bearing RMTL Series | AirTAC

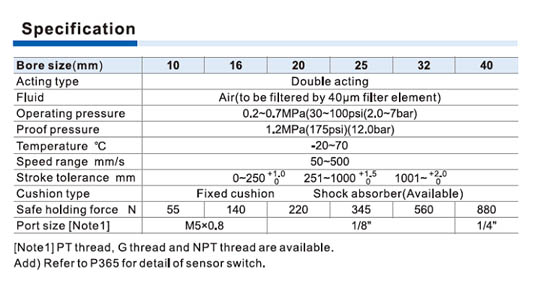

Specification:

Product Overview

The RMTL Series Guided Rodless Magnetic Cylinder with Ball Bearing by AirTAC is a high-precision pneumatic linear actuator that combines magnetic coupling technology with a ball bearing guide system to deliver ultra-smooth, accurate, and stable linear motion.

It is designed for industrial automation applications requiring high accuracy, low friction, and long service life.

Key Features

1. Rodless design that saves installation space and reduces overall system length
2. Magnetic coupling between piston and carriage for smooth, contact-free force transmission
3. Ball bearing guide system that significantly reduces friction and improves motion smoothness
4. Double guide structure providing high rigidity and excellent resistance to side or offset loads
5. High-strength aluminum body with superior wear and corrosion resistance
6. Robust carriage platform suitable for mounting tooling, fixtures, and worktables
7. Magnetic and non-magnetic versions available for flexible sensor integration
8. End cushioning system for smooth deceleration and reduced impact at high speeds

Advantages

1. Ultra-smooth and precise linear motion
2. Excellent side-load and offset-load capacity
3. Reduced mechanical wear and extended service life
4. Stable performance at high operating speeds
5. Easy integration into modern automation systems

Applications

1. High-precision automated assembly lines
2. High-speed packaging, labeling, and sorting machines
3. Pick-and-place systems and linear robotic modules
4. CNC machines and precision manufacturing equipment
5. Electronics, precision engineering, food processing, and logistics industries
