Air Die Grinder Onpin OP-G4214L - 6mm Collet, 14000 RPM, 0.5HP (373W) Horse Power
The Onpin OP-G4214L air die grinder is an industrial pneumatic tool delivering 0.5 HP (373 W) of power, operating under a standard compressed air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). Featuring a standard 6 mm collet size (options for 1/4" and 3mm), a free speed of 14,000 rpm, a safety-lock trigger, and a PU protective cover to prevent hand chill in cold environments. Built with an overall length of 185 mm (7.21 inches), net weight of 0.73 kg (1.61 lb), 360° rear exhaust, air consumption of 266 l/min (9.4 cfm), sound level of 82 dB(A), and low vibration level of 0.5 m/s², this tool provides high ergonomics and efficiency for deburring and grinding operations.
- OP-G4214L
- OPG4214L
- OP G4214L
- OP-G4214L series
- OP-G4214L model
- air die grinder 0.5HP
- Onpin pneumatic die grinder 6mm collet
- safety lock trigger air grinder 14000 rpm
- 360 degree rear exhaust air die grinder
- low vibration pneumatic grinder 0.5m/s2
Design file download links:
Other fileDescription
Specification OP-G4214L
The Onpin OP-G4214L air die grinder is an industrial pneumatic handheld tool delivering 0.5 HP (373 W) of rotor power, operating under a standard compressed air supply of 90 psi (6.2 bar / 6.3 kg/cm²). Equipped with a 6 mm standard collet size and a free speed of 14,000 rpm, it is optimized for high-efficiency deburring, detail grinding, and metal surface preparation. Featuring a cold-insulating PU cover, safety-lock trigger, and 360° rear exhaust, this tool ensures outstanding safety and comfort for professional technicians.
Key Features of Onpin OP-G4214L
- Robust 0.5 HP (373 W) Power: Delivers steady rotational power for seamless deburring and surface preparation.
- Lightweight Design & PU Protective Cover: Ergonomic grip that reduces hand fatigue and prevents hand chill in cold environments.
- Safety-Lock Trigger Design: Prevents accidental tool startup, maximizing operational safety in industrial workplaces.
- 360° Rear Exhaust: Directs exhaust air away from the operator and work area, maintaining clean working surfaces.
- Low Vibration (0.5 m/s²) & Low Noise Level (82 dB(A)): Minimizes hand numbness and operational noise during extended shifts.
- Standard 6 mm Collet Size: Clamps securely onto standard carbide burrs (catalog options include 1/4", 3mm, and 6mm).

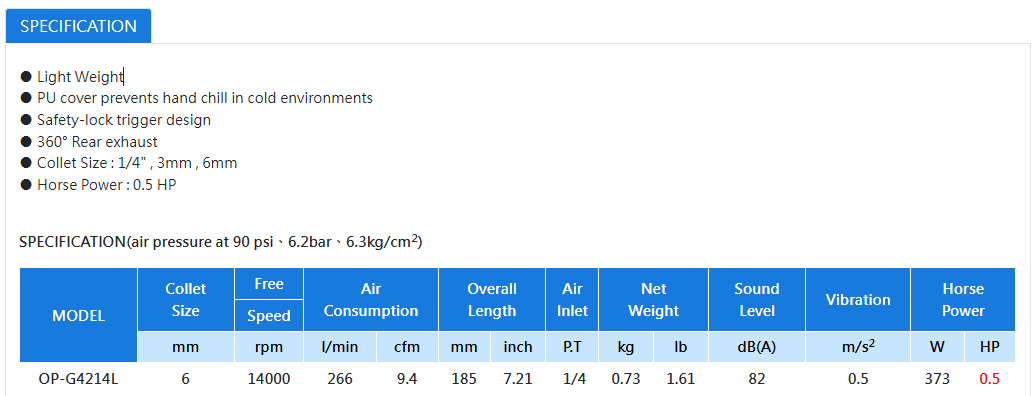

Technical Specifications of Onpin OP-G4214L
- Brand: Onpin
- Model: OP-G4214L
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Collet Size: 6 mm (Option: 1/4", 3mm, 6mm)
- Free Speed: 14,000 rpm
- Horse Power: 373 W (0.5 HP)
- Air Consumption: 266 l/min (9.4 cfm)
- Overall Length: 185 mm (7.21 inch)
- Air Inlet: 1/4 P.T
- Net Weight: 0.73 kg (1.61 lb)
- Sound Level: 82 dB(A)
- Vibration Level: 0.5 m/s²
Industrial Applications of Onpin OP-G4214L
- Precision Parts Fabrication: Fine deburring, edge chamfering, and polishing of CNC-machined metal components.
- Die & Mold Manufacturing: Surface finishing and intricate contour grinding on injection molds and stamping dies.
- Automotive & General Assembly: Ideal for mechanical repair workshops, automotive manufacturing lines, and industrial maintenance operations.
