/ Air Sander Onpin OP-CVG660B - 6 Inch Pad, 5500 RPM, 2835W Motor Power
Air Sander Onpin OP-CVG660B - 6 Inch Pad, 5500 RPM, 2835W Motor Power
The Onpin OP-CVG660B pneumatic sander features an impressive 2835 W (3.8 HP) motor power, operating at a standard working pressure of 90 psi / 6.2 bar / 6.3 kg/cm². It is equipped with a 150 mm (6 inch) pad size and achieves a free speed of 5,500 rpm, delivering high performance for heavy-duty industrial surface processing. The tool measures 279 mm in overall length, weighs 6.29 kg, and is fitted with a 1/2 P.T air inlet and 12.7 mm (1/2 inch) hose size at an air consumption rate of 580 l/min.
- OP-CVG660B
- OPCVG660B
- OP CVG660B
- Onpin OP-CVG660B
- Onpin OPCVG660B
- Onpin OP CVG660B
- OP-CVG660B series
- OP-CVG660B model
- 6 inch air sander
- 6 inch pneumatic sander
- heavy duty air sander 3.8HP
- Onpin pneumatic sander 6 inch
- 2835W high power air sander
Design file download links:
Other fileDescription

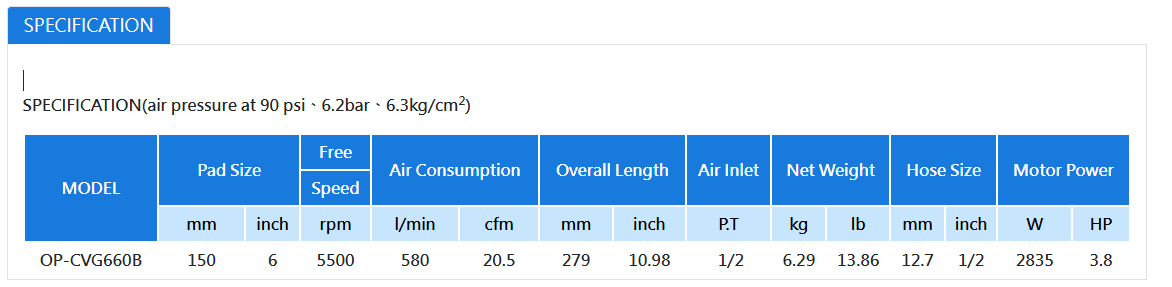

Specification OP-CVG660B
The Onpin OP-CVG660B pneumatic sander is a heavy-duty industrial air tool engineered for high-capacity metal grinding and surface conditioning, operating at a standard air pressure of 90 psi (6.2 bar / 6.3 kg/cm²). It features an exceptionally high motor output of 2835 W (3.8 HP) that drives a 6-inch pad at a free speed of 5,500 rpm for rapid material removal. This heavy-duty tool is designed for continuous, demanding applications in heavy fabrication plants and shipyards.
Key Features of Onpin OP-CVG660B
- Extreme Motor Power 2835 W (3.8 HP): Delivers maximum torque to prevent stalling under severe grinding loads on tough steel alloys.
- 150 mm (6 inch) Pad Size: Provides an extended contact area to optimize grinding coverage on large structural components.
- 5,500 RPM Free Speed: Calibrated specifically for heavy stock removal, deep weld seam grinding, and heavy rust scaling.
- Robust & Rigid Construction: Weighing 6.29 kg (13.86 lb) with an overall length of 279 mm (10.98 inch), it offers high stability and vibration control during high-power grinding operations.
- High-Flow Air Supply Design: Equipped with a 1/2 P.T air inlet and a 12.7 mm (1/2 inch) hose size to maintain a continuous air consumption rate of 580 l/min (20.5 cfm).
Technical Specifications of Onpin OP-CVG660B
- Brand: Onpin
- Model: OP-CVG660B
- Operating Air Pressure: 90 psi (6.2 bar / 6.3 kg/cm²)
- Pad Size: 150 mm (6 inch)
- Free Speed: 5,500 rpm
- Air Consumption: 580 l/min (20.5 cfm)
- Overall Length: 279 mm (10.98 inch)
- Air Inlet: 1/2 P.T
- Hose Size: 12.7 mm (1/2 inch)
- Net Weight: 6.29 kg (13.86 lb)
- Motor Power: 2835 W (3.8 HP)
Industrial Applications of Onpin OP-CVG660B
- Shipbuilding & Offshore Structures: Heavy plate beveling, scale removal on ship hulls, and thick weld joint dressing.
- Heavy Steel Fabrication: Weld seam leveling on structural H-beams, cranes, and pressure vessel shells.
- Foundries & Heavy Casting: Deburring and gate/riser removal on large iron and steel castings.
- Oil & Gas Pipeline Fabrication: Surface preparation and weld bead grinding on storage tanks and large-diameter pipes.
