ACA / ACJ Industrial Shock Absorber – High Performance Adjustable & Self-Compensating Damper

Specification ACA ACJ Series Shock Absorber:

Product Overview

1. ACA (self-compensating) and ACJ (adjustable) shock absorbers convert kinetic energy into thermal energy via hydraulic damping.
2. They minimize vibration, reduce impact force, and enhance machine performance and durability.

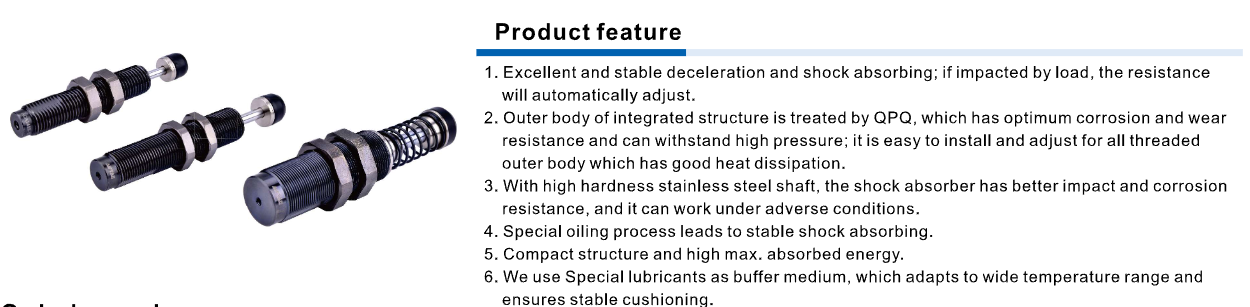

Features and Key Characteristics

1. Excellent and stable deceleration performance with automatic resistance adjustment under load.
2. Three impact speed ranges:
3. High speed (light load)
4. Medium speed (medium load)
5. Low speed (heavy load)
6. Fully threaded body design for easy installation and efficient heat dissipation.
7. Integrated robust structure ensures high pressure resistance and durability.
8. Multiple crash cap options: No cap, plastic cap, or iron cap.
9. Two product types:
10. ACA: Self-compensating shock absorber
11. ACJ: Adjustable shock absorber
12. High-quality stainless steel shaft for superior wear and corrosion resistance.
13. Special lubricating oil ensures stable performance across a wide temperature range.

Technical Specifications

1. Stroke: 6 – 75 mm
2. Max energy absorption: 3 – 1050 Nm
3. Max energy absorption per hour: up to 210,000 Nm/h
4. Effective mass: up to 16,800 kg
5. Max impact speed: 1 – 4 m/s
6. Weight: 12 – 1720 g
7. Thread sizes: M8 to M42
8. Mounting accessories: Stop collar, Flange

Advantages

1. Protects machinery from impact damage
2. Extends equipment lifespan and reduces maintenance costs
3. Provides smooth and stable operation
4. Easy installation and adjustment
5. Suitable for a wide range of industrial applications

Applications

1. Automation machinery and production lines
2. Industrial robots and pick-and-place systems
3. Packaging machines and CNC equipment
4. Conveyor and material handling systems
5. Repetitive impact mechanical systems
