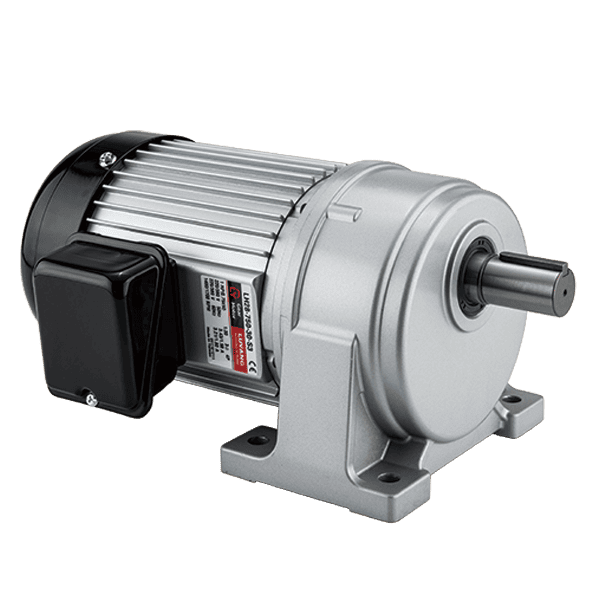

Luyang LH Horizontal Gear Motor

Specification:

Feature:

Through unique design and explicit quality inspection, our gear motors can perform in low noise, low temperature rise, and long lifetime. In addition, all gear boxes are under restricted inspection to ensure no oil leakage and stable operation.

We use lightweight aluminum alloy material with high heat dissipation and adopt baking paint treatment so that the product is light and compact in design.

You can select a brake assembly as brake gearmotor type, or the product certified by UL and CE specifications. Or high-efficiency motors IE3 level can also be specified now.

Can produce according to different voltages of countries.

The helical gear realizes low noise by high precision machining.

Grease anti-leakage design and no need to change grease.

Using lightweight aluminum alloy (except LH40 and LH50) with baking paint treatment.

Integrated structure.

Products with high efficiency motors can be selected.

Applied in packaging machine, food machine, automation equipment, conveyor system, CNC machine, auto feeder and other industries.

Made in Taiwan with stable quality.

Output: 100W ~ 3700W (1/8HP ~ 5HP).

Standard Ratio: 3~200.

Voltage: Single-phase (capacitors necessary) or three phase.

Optional Accessories: Brake installation.

Can choose high-efficiency motor (Level IE3:1HP~2HP) or products certified UL or CE.

Model Composition: Gear motors, gear motor with brake, high-efficiency gear motor (IE3).
