PV Union Elbow Connector – Pneumatic 90° Union Fitting for Air Tubing

Specification PV Union Elbow Connector :

Product Overview

1. PV is a 90° union elbow push-in fitting, allowing quick connection of two air tubes without threading.
2. It helps change airflow direction and simplify tubing installation.

Features and Key Characteristics

1. 90-degree elbow design, ideal for space-saving installations
2. Dual push-in connection, quick and tool-free operation
3. High flow capacity, equivalent to tubing inner diameter
4. Strong and durable structure, ensuring long-term performance
5. Excellent sealing performance, minimizing air leakage
6. Compact size, suitable for tight spaces
7. Compatible with PU and nylon tubing

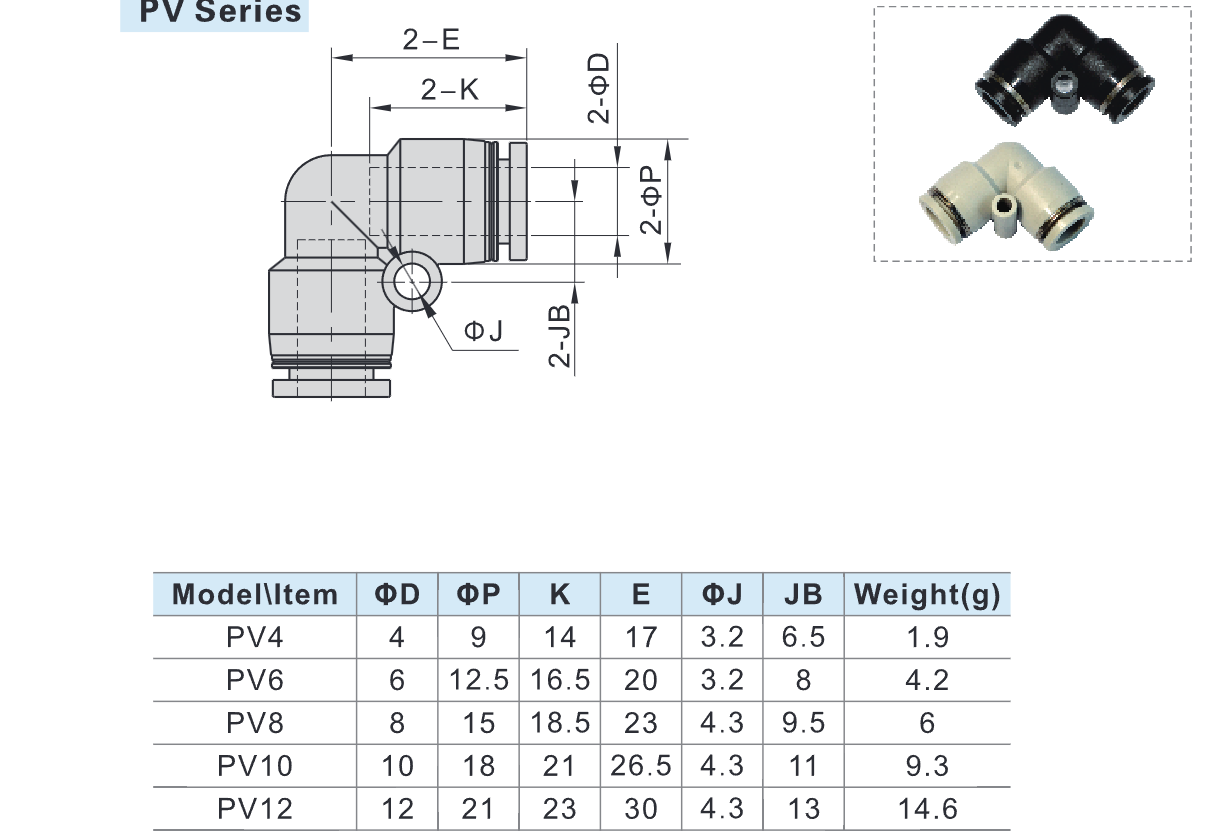

Technical Specifications

1. Tube sizes: Ø4, Ø6, Ø8, Ø10, Ø12 mm
2. Working pressure: 0 – 1.0 MPa
3. Proof pressure: 1.5 MPa
4. Vacuum pressure: -750 mmHg (10 Torr)
5. Operating temperature: -20°C to 70°C
6. Materials: POM engineering plastic, NBR seal
7. Applicable tubing: PU or soft nylon

Advantages

1. Quick installation, no tools required
2. Leak-proof connection, improved efficiency
3. Lightweight and easy to use
4. Durable and reliable operation
5. Ideal for compact pneumatic systems

Applications

1. Factory pneumatic systems
2. Industrial automation and robotics
3. Production lines and packaging machines
4. Air routing in confined spaces
5. Pneumatic tools and equipment
