/ AIRTAC HFKL Series Air Gripper, Parallel Pneumatic Gripper with Linear Guide and Long Stroke, Roller Bearing Type

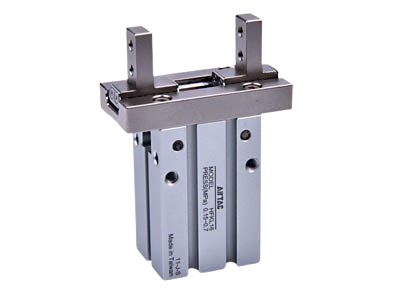

AIRTAC HFKL Series Air Gripper, Parallel Pneumatic Gripper with Linear Guide and Long Stroke, Roller Bearing Type
The AIRTAC HFKL Series Air Gripper is a high-precision parallel pneumatic gripper designed with an integrated linear guide and roller bearing system for superior rigidity and stability. Featuring a long clamping stroke, high repeatability (±0.01mm), and multiple mounting options, this double-acting air gripper is ideal for industrial automation, robotic handling, and precision gripping applications. Available in bore sizes 10, 16, 20, and 25 mm with flexible finger customization options.
- HFKL10
- HFKL16
- HFKL20
- HFKL25
- HFTKL10
- HFTKL16
- HFTKL20
- HFTKL25
- HFSKL10
- HFSKL16
- HFSKL20
- HFSKL25
- pneumatic air gripper
- parallel gripper
- airtac gripper
- robotic gripper
- industrial automation gripper
Design file download links:
Other fileRAR filePDF fileDescription
Specification AIRTAC HFKL:
1. Product Overview
The AIRTAC HFKL Series Air Gripper is a high-precision parallel pneumatic gripper designed for industrial automation systems and robotic handling applications.
It features an integrated linear guide rail with roller bearing structure, ensuring superior rigidity, stability, and positioning accuracy during gripping operations.
Series variants include:
- HFKL – Double Acting
- HFTKL – Single Acting Normally Open
- HFSKL – Single Acting Normally Closed
2. Key Features
- Long clamping stroke design
- → Suitable for different object sizes and flexible production lines.
- Integrated linear guide roller system
- → High rigidity and improved motion precision.
- Positioning pin design
- → Prevents deviation between rail and body.
- Positioning hole structure
- → Enhances repeated installation accuracy.
- Multiple mounting options
- Surface mounting
- Tail mounting
- Front mounting
- Side mounting
- Magnetic switch slots (Square & Round types)
- → Compatible with DMS, CMS, EMSG, EMSH inductive switches.
- Customizable finger types
- → Adaptable to various gripping requirements.
3. Technical Specifications
- Series: HFKL / HFTKL / HFSKL
- Bore Sizes: 10, 16, 20, 25 mm
- Working Medium: Filtered air (40μm)
- Operating Pressure:
- Double Acting: 0.2–0.7 MPa
- Single Acting: 0.25–0.7 MPa
- Temperature Range: -20°C to 70°C
- Repeatability: ±0.01 mm
- Max Frequency: 120 cycles/min
- Port Size: M3x0.5 / M5x0.8
- Lubrication: Not required
4. Advantages
- High precision gripping performance
- Strong rigidity due to roller guide structure
- Compact yet powerful gripping force
- Easy integration with robotic automation systems
- Stable operation in continuous industrial environments
5. Applications
- Robotic pick and place systems
- Electronics assembly lines
- Packaging and material handling
- Precision machining automation
- Plastic, food, and pharmaceutical machinery
