MCK Clamping Pneumatic Cylinder – Heavy Duty Double Acting Clamp Cylinder
The MCK Series clamping pneumatic cylinder is a double-acting clamp cylinder designed for welding and industrial automation environments. Featuring a robust structure with dust and slag protection, it ensures high durability and reliability. Available in bore sizes from 40–80mm with multiple stroke options, it is ideal for clamping, holding, and positioning applications.AIRTAC MCK round pneumatic cylinders are designed to be powerful and efficient in a wide range of applications, from industrial automation systems to compact equipment requiring limited space. They are versatile in a wide range of climates and environments, and are integrated with advanced technology to optimize performance and minimize failures. With easy installation and operation, AIRTAC MCK round pneumatic cylinders are the ideal choice for applications in industries such as manufacturing, mechanical processing, packaging and many other fields requiring precise and reliable control of pneumatic systems.
- MCK
- MCK-S
- MCK-HS
- MCKA40x50
- MCKA40x75
- MCKA40x100
- MCKA40x125
- MCKA40x150
- MCKA50x50
- MCKA50x75
- MCKA50x100
- MCKA50x125
- MCKA50x150
- MCKA63x50
- MCKA63x75
- MCKA63x100
- MCKA63x125
- MCKA63x150
- MCKA80x50
- MCKA80x75
- MCKA80x100
- MCKA80x125
- MCKA80x150
- MCKB40x50
- MCKB40x75
- MCKB40x100
- MCKB40x125
- MCKB40x150
- MCKB50x50
- MCKB50x75
- MCKB50x100
- MCKB50x125
- MCKB50x150
- MCKB63x50
- MCKB63x75
- MCKB63x100
- MCKB63x125
- MCKB63x150
- MCK80x50
- MCK80x75
- MCK80x100
- MCK80x125
- MCK80x150
- MCK50x75S
- MCK50x75Y
- MCK50x75YW
- MCK63x100S
- MCK63x100Y
- MCK63x100YW
- clamping pneumatic cylinder
- MCK clamp cylinder
- welding clamp cylinder
- heavy duty air cylinder
- industrial clamp cylinder
Design file download links:
Other fileRAR filePDF fileDescription

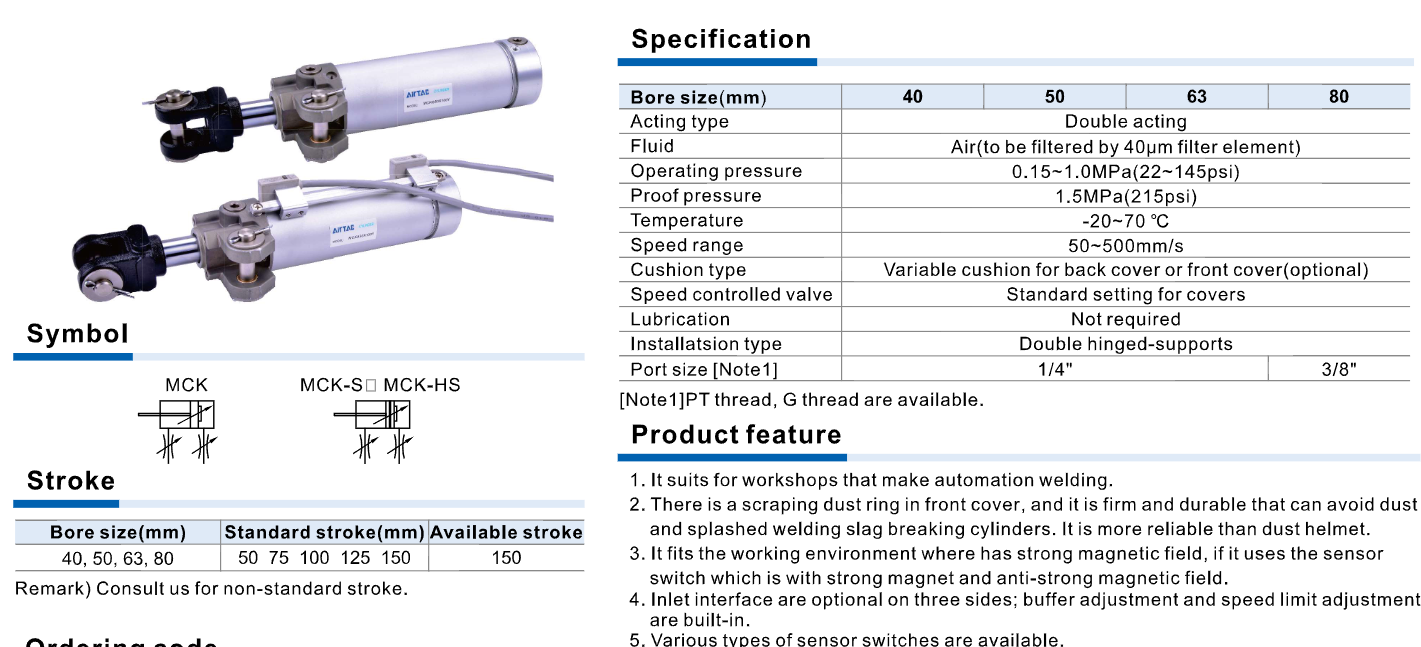

Specification MCK:
Product Overview
The MCK Series pneumatic cylinder is a double-acting clamping cylinder specifically designed for industrial clamping and holding applications, especially in welding environments. It integrates a robust clamping mechanism to ensure stable and secure operation in demanding conditions.
Features and Characteristics
- Specialized clamping design for stable and secure holding applications
- Equipped with a dust and welding slag protection ring at the front cover
- Durable aluminum alloy body for high strength and long service life
- Adjustable cushioning (variable cushion) available for front or rear cover
- Multiple mounting and connection options such as Y knuckle and YW knuckle
- Optional magnetic sensor for accurate position detection
- Built-in speed control valve for smooth motion control

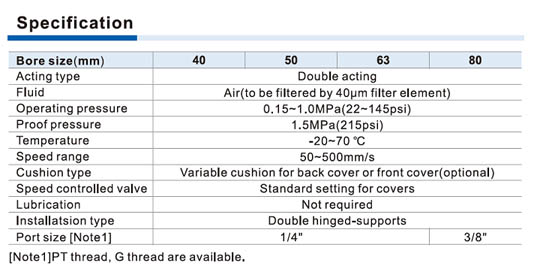

Technical Specifications
- Type: Double acting
- Fluid: Filtered air (40µm filtration)
- Operating pressure: 0.15 ~ 1.0 MPa (22 ~ 145 psi)
- Proof pressure: 1.5 MPa (215 psi)
- Temperature range: -20 ~ 70°C
- Speed range: 50 ~ 500 mm/s
- Bore size: 40, 50, 63, 80 mm
- Standard stroke: 50, 75, 100, 125, 150 mm
- Cushion type: Adjustable (front/rear optional)
- Mounting type: Double hinged supports
- Port size: 1/4", 3/8" (PT, G thread available)
- Lubrication: Not required
Advantages
- Strong clamping force and high stability in harsh environments
- Excellent resistance to dust and welding slag
- Long service life with minimal maintenance
- Flexible speed and cushioning adjustment
- Easy integration into automation systems
- Reliable operation even in strong magnetic environments
Applications
- Automated welding systems
- Metal clamping and holding fixtures
- Machinery and assembly lines
- Automotive and steel structure manufacturing
- Applications requiring secure clamping in harsh conditions
