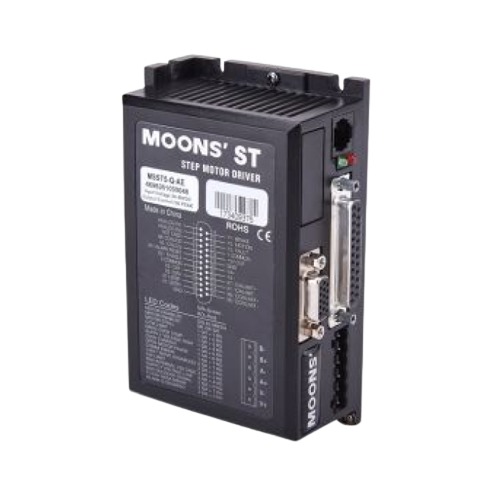

Moons' DRIVER ST

Specification:

Feature:

Anti-Resonance

Step motor systems have a natural tendency to resonate at certain speeds.The SR drives automatically calculate the system’s natural frequency and apply damping to the control algorithm. This greatly improves midrange stability, allows higher speeds and greater torque utilization, and also improves settling times.

Provides better motor performance and higher speeds

Microstep Emulation

With Microstep Emulation, low resolution systems can still provide smooth motion. The drive can take low resolution step pulses and create fine resolution motion.

Delivers smoother motion in any application

Torque Ripple Smoothing

All step motors have an inherent low speed torque ripple that can affect the motion profile of the motor. By analyzing this torque ripple the system can apply a negative harmonic to counter this effect.This gives the motor much smoother motion at low speed.

Produces smoother motion at low speeds

Command Signal Smoothing

Command Signal smoothing can soften the effect of immediate changes in velocity and direction, making the motion of the motor less jerky. An added advantage is that it can reduce the wear on mechanical components.

Improves smoother system performance

Auto Setup & Self Test

At start-up the drive measures motor parameters, including the resistance and inductance,then uses this information to optimize system performance. The drive can also detect open and short circuits.

Link detail product: https://www.moonsindustries.com/series/st-series-two-phase-dc-stepper-motor-drives-b01020201
